Application:

B series are used for fixedly laying in engine devices of A.C. rated voltage 300/500V or lower; R series of soft connection cable (wire) with Cu condnctor, PVC insulation are used for household electrical appliances, small electrical tools, instruments and engline lighting of A.C. rated voltage 450/750V of lower.

Description:
Executive Standard：
  GB5023.1~2008    JB8734.1~1998 (equal to IEC227)

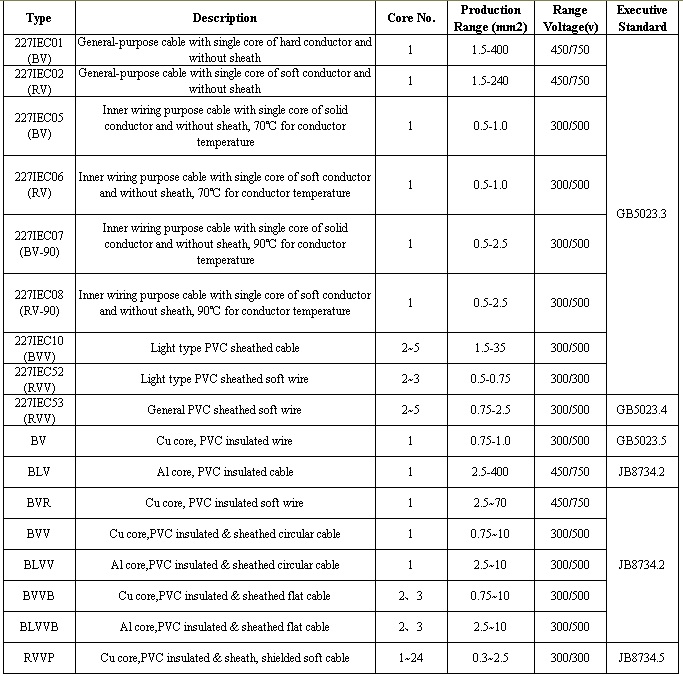

Type, Name and Standard


Working Conditions :
The long-term working temperature of BV-90,RV-90 type cable should be no higher than 90℃, and that of other type cable should be no higher than 70℃.

Cable Length:
It depends on final both agreements with length error allowance no more than ±0.5%.
