Applications
It is used for household electrical appliances; electrical tools and various mobile electrical equipments of A.C. rated voltage 450/750V or lower.
Executive Standard: JB8735.2-1998.

Working Conditions
1.Rated voltage 300/500V(YZ type ), 450/750V (YC type );
2．The long-term working temperature of conductor should be no higher than 65℃;
3．"W” type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4．“ZR” type cables have fire-retardant character.

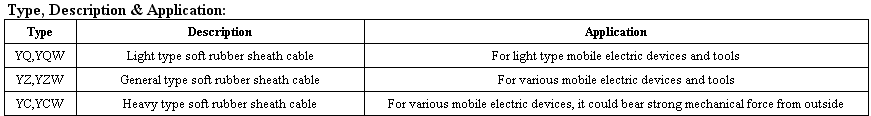

Specification
 No picture

Size and Technical
YQ、YQW -type 300/300V
No picture



Cable length
1．The length of the cable in coil should be 100m, and that on drum should be more than 100m;
2．The length of pieces of shorter cable (no shorter than 10m each) should be no more than 10% of the total length；
3．It depends on final both agreements with length errorallowance no more than ±0.5%.
4．The additional agreements should be added for the user is demand on flame-retardant performance.
