Applications:

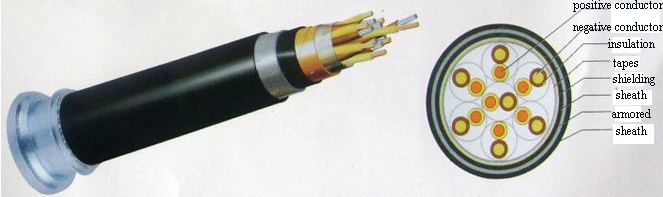

Compensational wire and cagle are one pair or multi pair of insulated wire or cable with the same Pyro EMF value with matched measuring devices to compensate the error resulting from temperature change on the connection part. They are divided into two types including extension type and compensational type.
Execute Standard:       GB/T4989-94 and JB/T7495-94.

Working Conditions
1.    Max. Working Temperature:Heat –resisant cable:2 kinds inculding 200℃ & 260℃;Common cable: 2 kinds including 70℃ & 105℃;
2.    Min. Environment Temperature：Wire & Cable with fluoroplastics insulation & sheath:fixed installation:-60℃, Otherwise:-20℃; Wire & Cable with PVC insulation & sheath: Fixed installation:-40℃, Otherwise: -15℃.
3.    Bending Raduus Allowed:
It should be no less than 6 times that of cable outer diameter for cables with PVC insulatyion and sheath but without armor; It should be no less than 10 times that of cable outer diameter for cables with fluoroplastics insulation and sheath but without armor; It should be no less than 12 times that of cable outer diameter for armored cables.
