Application: It is used to transmit singnal for electric appliances, instruments and automatic control system in bad environment of extreme temperature, or with acid, alkali, oil or gas corrosion in petroleum, chemical, power, and metallurgy enterprises.

Description:

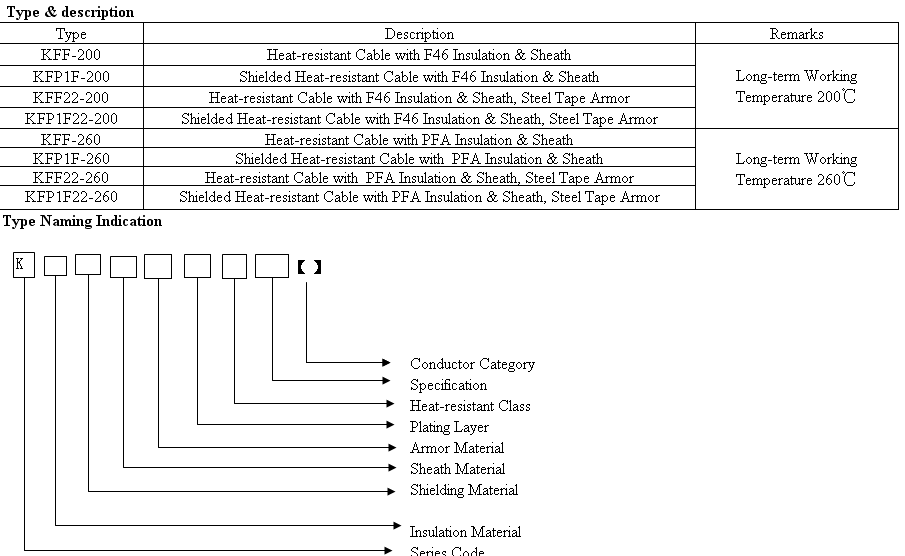

Applications : It is used to transmit singnal for electric appliances, instruments and automatic control system in bad environment of extreme temperature, or with acid, alkali, oil or gas corrosion in petroleum, chemical, power, and metallurgy enterprises. Executive Standard: As the enterprise is standard Working Conditions: 1. Working Temperature: no higher than 200℃ for KFF-200、KFP1F-200、KFP1F22-200、KFF22-200 types；no higher than 260℃ for KFF-260、KFP1F-260、KFF22-260、KFF1F22-260 types; 2. Rated Voltage UO/U：450/750V or lower; 3. Min. Ambient Temperature:60℃ for fixed installation; -20℃ for non-fixed installation; 4. Min. Bending Radius: no less than 10 times that of cable outer diameter for KFF type cable；no less than 12 times that of cable outer diameter for KFF22、KFP1F、KFP1F22 type cables. Code meaning: No picture: For example: Heat-resistant cable with 10 cores of 1.5m㎡ tinned Cu wire of structure A, F46 insulation & sheath, steel tape armor & shielding of tinned Cu wire is described as: KFP1F22X-200 10×1.5(A) For example: Heat-resistant cable with 10 cores of 1.5m㎡ silver plated conductor of structure B, and PFA insulation & sheath is described as: KFFY 260 10×1.5(B)
