Applications
It is used as connection cable lf inspection devices and instruments with high demand on interference-resistant performance in computer network and control System

Working Conditions
 1.Rated voltage U/U:300/500V,Long-term Working temperature:70℃ & 105℃ for PVC, 70℃ for Peinsulation 90℃ for XLPE insulation ( XLPE insulation includes silane XLPE & irradiation XLPE insulation ）.
 2. the cable is fixedly laid in the environment with temperature of -40℃-50℃,and environment temperature for installtion should be no lower than 0℃.
 3. Bending radius in installation should be no less than 10 times that of cable outer diameter for the cable with Cu tape shielding structure,no less than 12 times for armored cable and no less than 6 times for other cable

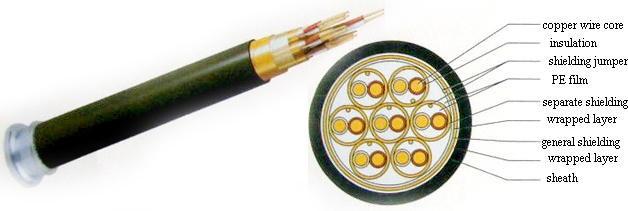

Model and Structure Feature
 No picture
